Canon

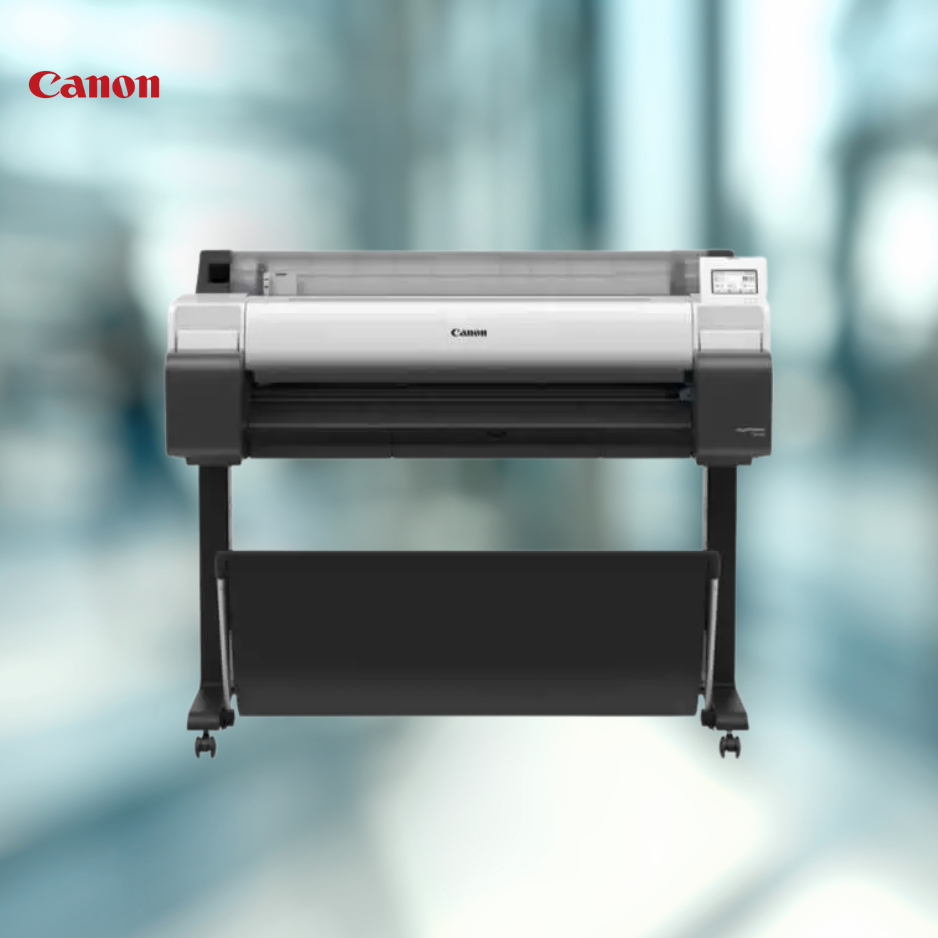

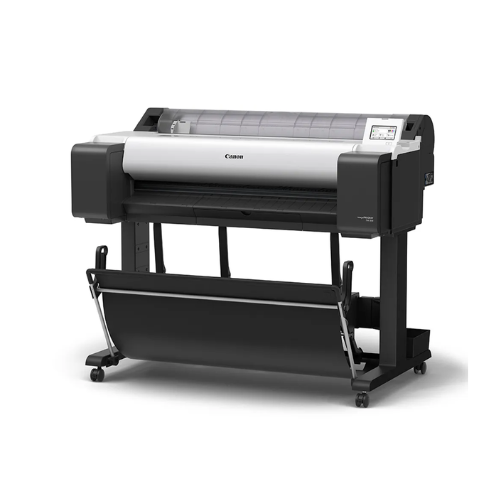

Canon imagePROGRAF TM-350 Printer (36″) 5 Colour A0 CAD Plotter – General Purpose & Poster Printer

Get in touch for a quick quote

Product range: 6246C003AA

In Stock

£0.00 +VAT

Contact us for a competitive quote

Canon Large Format Contact Us Plotter – Built With Sustainability in Mind

The TM-350 is a compact yet powerful A0 CAD plotter printer, thoughtfully designed with sustainability at its core. Capable of handling everything from A4 to A0 prints, whether from rolls or individual sheets, it also supports banner printing up to 18 meters in length.

Thanks to its newly developed magenta ink, colours are more vivid and precise than ever before, while durable pigment inks ensure smudge-resistant, long-lasting results on every print.

From detailed CAD drawings to vibrant posters and full-colour images, the TM-350 delivers exceptional quality across a wide range of applications, all from one intuitive device.

With its ultra-quiet operation, it’s perfectly suited for smaller or shared workspaces, while still being fully capable of handling regular and even high-volume print demands.

Key Features

  • Enhanced Magenta Ink – Produces brighter, more vibrant reds for superior print quality.
  • Borderless Printing – Create full-bleed posters and graphics without margins.
  • Pigment-Based Ink System – Long-lasting, smudge-resistant results you can rely on.
  • Fast Print Speeds – Output an A1 in as little as 17 seconds or an A0 in 32 seconds.
  • Flexible Ink Tank Options – Choose 130ml or 300ml mix-and-match tanks to lower the cost per print.
  • 5-Colour Canon LUCIA Pigment Inks – Deliver rich, powerful colour expression across every project.
  • Intuitive 4.3” Touchscreen – Simple, user-friendly operation at your fingertips.
  • Eco-Friendly Design – Certified EPEAT Gold* for sustainability.
  • Quick Wake-Up – Rapid recovery from sleep mode keeps productivity flowing.
  • Ultra-quiet operation – ideal for noise-sensitive environments.
  • Smart Media Management – Automatically detects media type and remaining roll for added convenience.

Printer Inks

The Canon TM-350 features a five-colour ink system with Matte Black, Black, Cyan, Magenta, and Yellow for outstanding print quality.

Supplied with a full set of 90ml starter cartridges, the 36″ TM-350 is ready to get you printing straight out of the box.

When replacements are needed, please send us your Canon 130ml PFI-120 and PFI-121 ink order.

Available Cartridges:

  • 2884C001AA | PFI-120MBK | Matte Black
  • 2885C001AA | PFI-120BK | Black
  • 2886C001AA | PFI-120C | Cyan
  • 6267C001AA | PFI-121M | Magenta
  • 2888C001AA | PFI-120Y | Yellow

Paper

Designed for versatile media use, accommodating roll lengths of up to 150m with standard CAD paper and 30m with heavier-weight or photo paper.

It supports roll widths from 297mm to the full 914mm, with 841mm rolls (true A0 size) being a popular choice for precise, full-size A0 prints.

In addition to rolls, it can also handle sheet printing from A4 to A0, though sheets require manual loading, making roll feed the preferred option for continuous or high-volume jobs. When using roll media, the automatic cutter trims each print horizontally, neatly delivering it into the convenient catch basket.

The TM-350 comes equipped with a 2″ core spindle, but it can also be fitted with an optional 3″ core adapter (sold separately) for greater flexibility.

Even with the standard 2″ core, the printer supports an impressive range of media, from everyday 80gsm and 90gsm plain paper to premium 260gsm satin and gloss photo rolls, ensuring professional results across a variety of applications.

Specification Sheet

pdf-download

  • Printer Model: TM-350
  • Size: A0

For building plans, draft drawings, designs, posters
